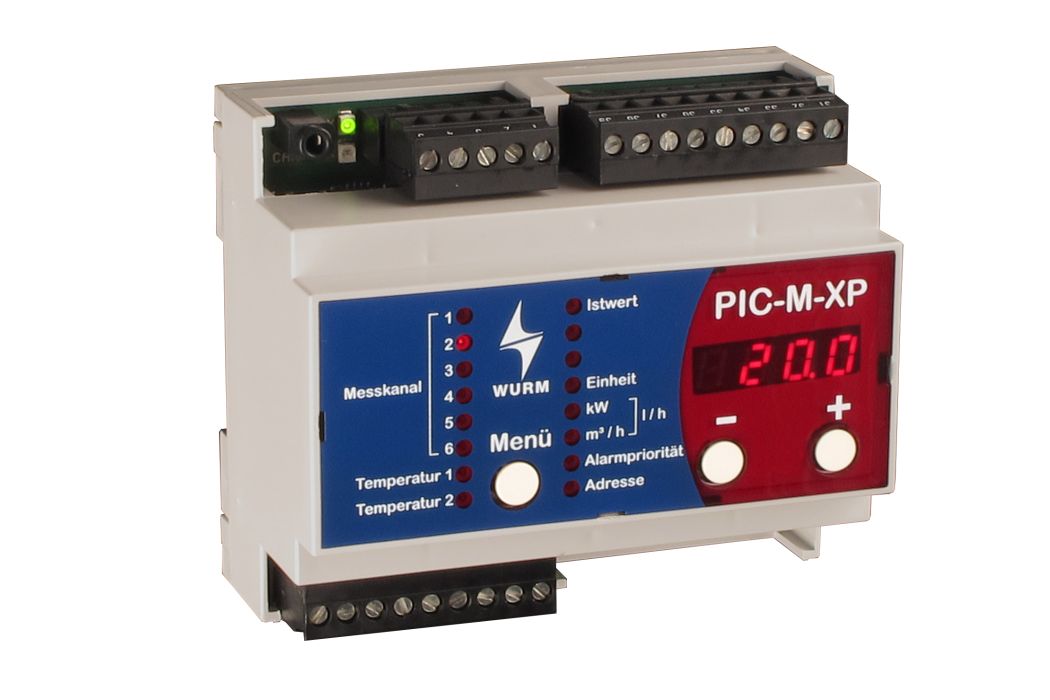

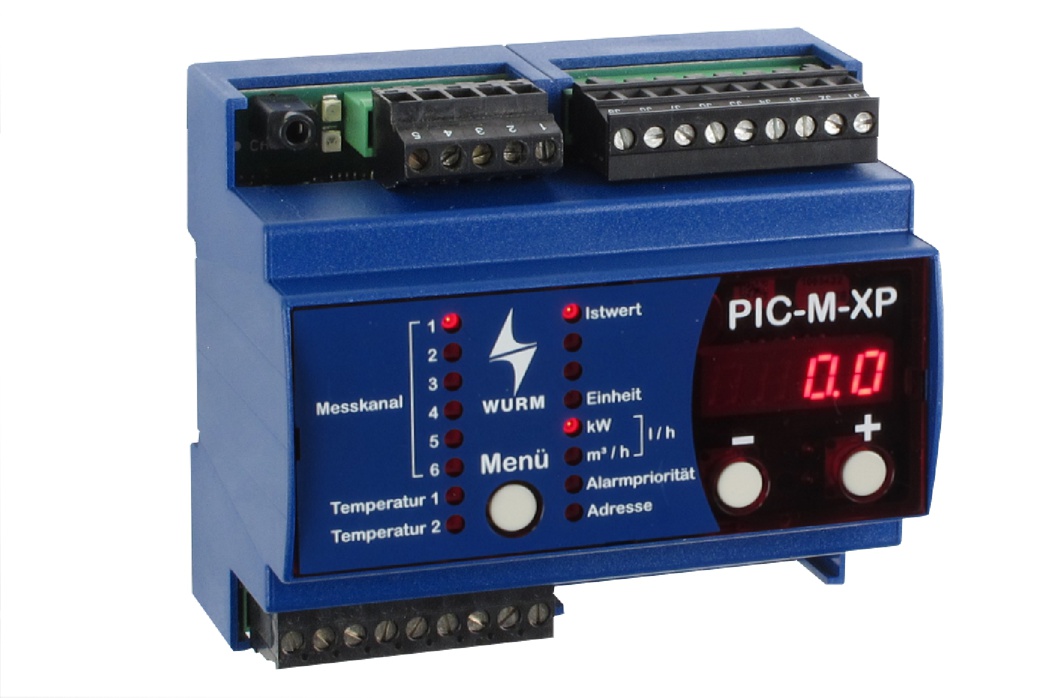

UNIVERSAL XP / Product range / Consumption recording / PIC-M-XP
M-bus based metering module

  • Metering of consumption of electrical energy, water and gas for 6 M-bus meters
  • Synchronization with the quarter-hour signal of the public utility company (PUC)
  • Metering of consumption at high and low tariffs through the connected meters
  • Internal storage of power demand in order to evaluate power peaks
  • Saving of extensive consumption values for statistical analysis
  • Graphical representation of power consumption and querying of consumption meters and statistics using FRIGODATA XP
  • Overload, short circuit and data collision detection
  • Plug-in screw terminals
  • Direct connection of a CAN-USB to the service socket
  • Connection to the Wurm system via a communication bus (CAN bus) and FRIGODATA XP



DateinameKategorieSpracheVersionLetzte AktualisierungGröße
PIC-M-XP_V1.30_DB_2015-01_EN.pdfDatenblattEN1.3022.01.2016266,89 KB
PIC-M-XP_V1.30_DB_2015-01_DE.pdfDatenblattDE1.3022.01.2016238,37 KB
PIC-M-XP_V1.30_DB_2015-01_FR.pdfDatenblattFR1.3022.01.2016287,53 KB
PIC-M-XP_V1.30_DB_2015-01_IT.pdfDatenblattIT1.3022.01.2016280,52 KB
PIC-M-XP_V1.30_DB_2015-01_NL.pdfDatenblattNL1.3022.01.2016280,54 KB
NameBeschreibung
DateinameKategorieSpracheVersionLetzte AktualisierungGröße
NameBeschreibung
TERDoor installation frame for installation individual devices in control cabinet doors
