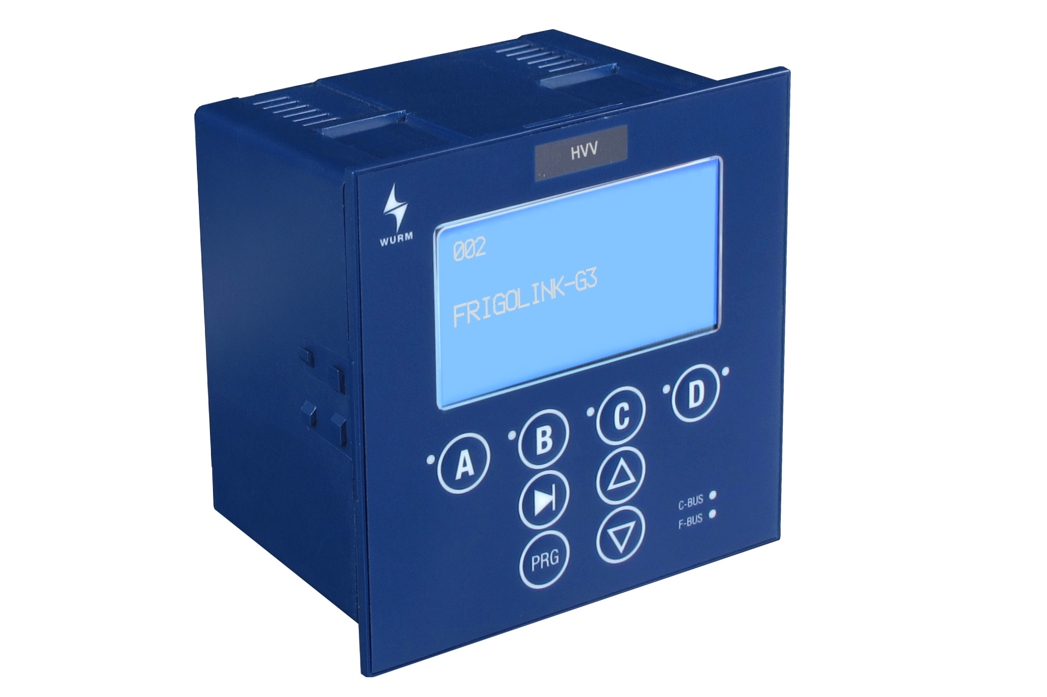

FRIGOLINK / Lieferprogramm / Verbunde / HVV-G3
Hauptmodul für 2 Verbundanlagen

  • Einfache Inbetriebnahme durch Parametrierung der Anlagen mit Voreinstellungen aus Expertendatenbank

  • Anschluss von 8 Verbund-Feldmodulen

  • Regelung von 16 Verdichtern (abhängig von Verdichtertyp, Feldmodultyp und Betriebsart)

  • Verdichterregelung nach COP

  • Unterscheidung von nicht verwendeten und defekten Fühlern

  • Regelkreise je Verbund:

    • Saugdruckregelung

    • Verflüssigerregelung

    • Regelung elektronischer Expansionsventile

  • Regelverfahren:

    • Standard-Stufenschaltwerk mit Grundlastwechsel

    • Verdichterregelung mit Frequenzumformer

    • Frigotakt+ und Frigotakt-G4

  • Sperrmöglichkeit gegen Parameterverstellung (SAC – Security Access Control)

  • Integrierte Relaisausgänge

  • Mehrsprachige Menüführung (DE/EN/FR/NL)

  • Verbindung zum Wurm-System über Wurm-CAN-Kommunikationsbus (C-BUS) und FRIGODATA XP

  • Hohe Sicherheit durch galvanisch getrennte Wurm-CAN-Busse

 DateinameKategorieSpracheVersionLetzte AktualisierungGröße

Sprache: CZ

 HVV-G3_V7.9.0_PI_2016-01_CZ.pdfProduktinformationCZ7.9.013.01.2016293,19 KB

Sprache: DE

 HVV-G3_V8.3.2_DB_2024-01_DE.pdfDatenblattDE8.3.229.01.2024822,81 KB
 HVV-G3_V8.2.0_PI_2021-12_DE.pdfProduktinformationDE8.2.016.03.2022813,64 KB

Sprache: EN

 HVV-G3_V8.3.2_DB_2024-01_EN.pdfDatenblattEN8.3.229.01.20241,26 MB
 HVV-G3_V8.2.0_PI_2021-12_EN.pdfProduktinformationEN8.2.016.03.2022824,21 KB

Sprache: FR

 HVV-G3_V8.3.2_DB_2024-01_FR.pdfDatenblattFR8.3.229.01.2024877,7 KB
 HVV-G3_V8.2.0_PI_2021-12_FR.pdfProduktinformationFR8.2.005.04.2022792,98 KB

Sprache: IT

 HVV-G3_V8.3.2_DB_2024-01_IT.pdfDatenblattIT8.3.229.01.2024856,22 KB
 HVV-G3_V8.0.1_PI_2017-05_IT.pdfProduktinformationIT8.0.121.06.2017539,32 KB

Sprache: NL

 HVV-G3_V8.3.2_DB_2024-01_NL.pdfDatenblattNL8.3.229.01.2024853,93 KB
 HVV-G3_V8.2.0_PI_2021-12_NL.pdfProduktinformationNL8.2.005.04.2022801,89 KB

Sprache: RU

 HVV-G3_V8.0.1_PI_2018-01_RU.pdfProduktinformationRU8.0.125.04.2019416,95 KB
NameBeschreibung
HVV-G4Hauptmodul für 2 Verbundanlagen
HVV001BHauptmodul für Doppelverbundsteuerung
HVV-G3-MHauptmodul für Verbundanlagen mit Modbus-Anschluss
