FRIGOLINK / Product range / Compounds / HVI-G3-M

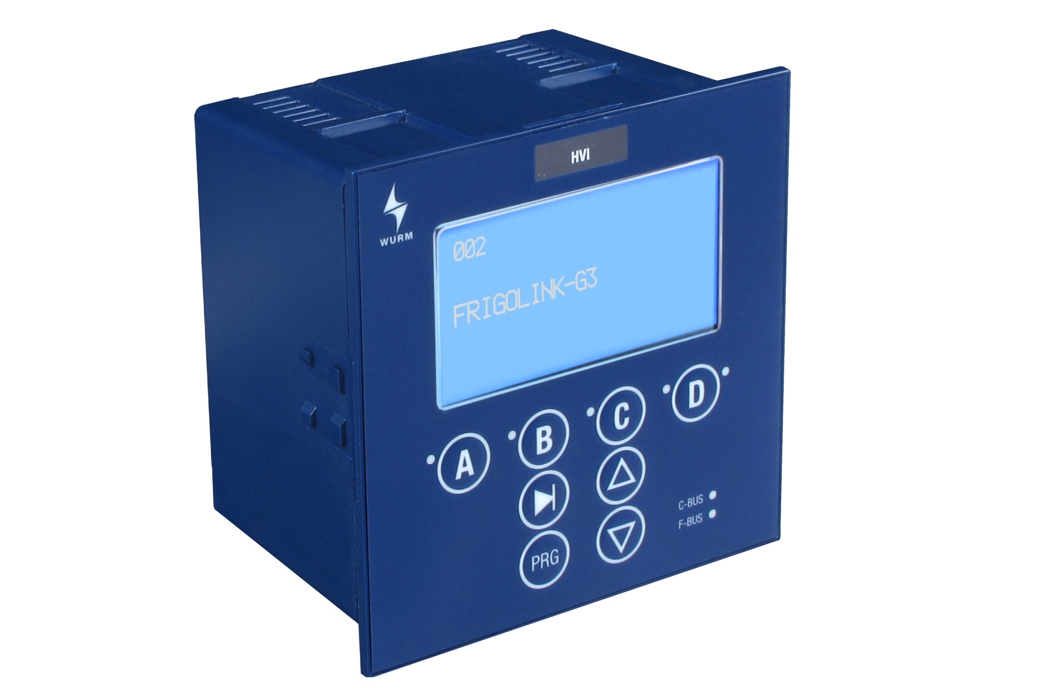

Master module for industrial compressor racks with Modbus connection

  • Simple start-up through parameter setting of the plants with presettings from the expert database
  • Connection of 12 compound field modules
  • Control of 16 compressors (depending on compressor type, field module type and operating mode)
  • Compressor control according to COP
  • Differentiation of unused sensors and faulty sensors
  • Control circuits:
    • Suction pressure or secondary refrigerant control
    • Condenser control
    • Control for the secondary refrigerant pumps
    • Control of electronic expansion valves
    • Free cooler
    • Monitoring of an individual system
  • Control process:
    • Standard multiple contact switch with base load change
    • Master-slave for reducing switching cycles in industrial systems
    • Compressor control with frequency converter
    • Standard with variable delay times
    • Frigotakt+

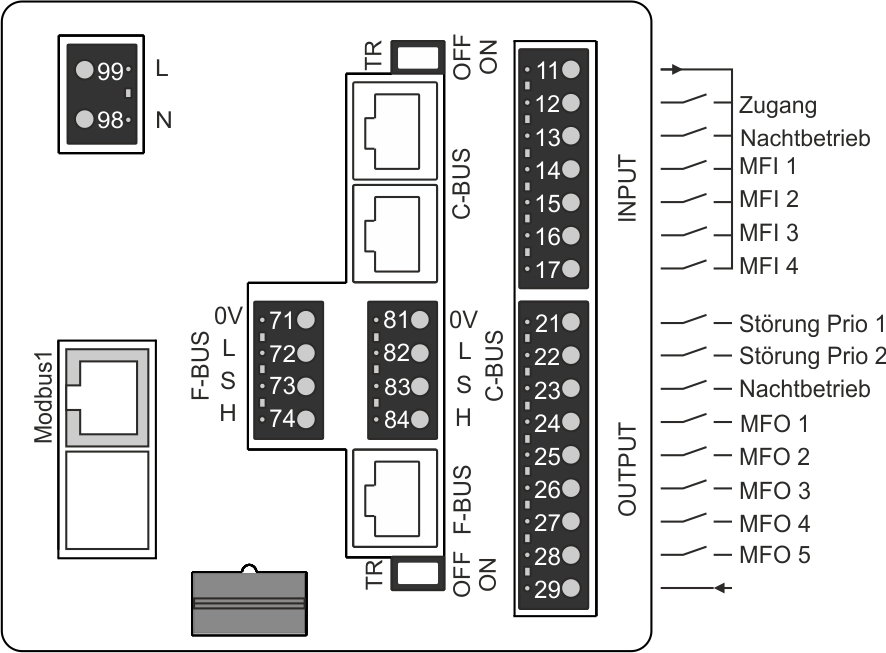

  • Integrated relay outputs
  • CAN bus connection via patch cable and push-in terminals
  • Multilingual menu prompting (DE/EN/FR/NL)
  • Connection to the Wurm system through a Wurm CAN communication bus (C-BUS) and FRIGODATA XP
  • High level of safety thanks to the galvanically isolated Wurm CAN field bus (F-BUS) used to connect the field modules
DateinameKategorieSpracheVersionLetzte AktualisierungGröße
HVI-G3-M_V8.0.1_PI_2018-01_EN.pdfProduktinformationEN8.0.105.04.2018496,7 KB
HVI-G3-M_V8.0.1_PI_2018-01_DE.pdfProduktinformationDE8.0.119.03.2018378,68 KB
HVI-G3-M_V8.0.1_DB_2018-01_FR.pdfDatenblattFR8.0.108.01.2018188,51 KB
HVI-G3-M_V8.0.1_DB_2018-01_IT.pdfDatenblattIT8.0.108.01.201894,45 KB
HVI-G3-M_V8.0.1_DB_2018-01_NL.pdfDatenblattNL8.0.108.01.2018183,88 KB
NameBeschreibung
HVI-G3Master module for industrial compressor racks
DateinameKategorieSpracheVersionLetzte AktualisierungGröße
NameBeschreibung
MGR131, MGR141, MGR231, MGR241Installation frame for master modules, switch cards, adapters and dummy plates
ZEMTension device for frameless installation of master modules G3 and G4
ZCB-CPrefabricated cables
ZCB-ADPCAN bus adapter
