UNIVERSAL XP / Product range / Heating / AHC-XP

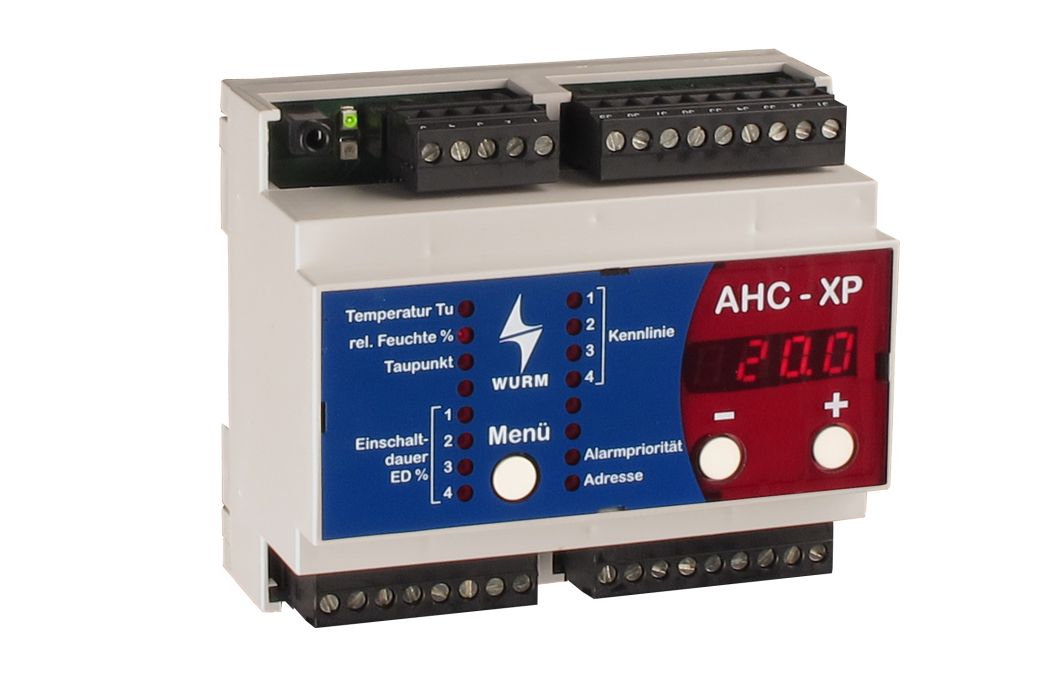

Dew point-guided power controller for glass and handrail heaters in combination with DCC-XP

  • Cost-optimised operation

  • Used in combination with DCC-XP from Version 5

  • Room temperature sensor and humidity sensor can be connected to the device or over a CAN bus (TRH-XP, TRS)

  • Emergency power mode to avoid load peaks by digital input

  • Display of market temperature, relative humidity, dew point and operating time

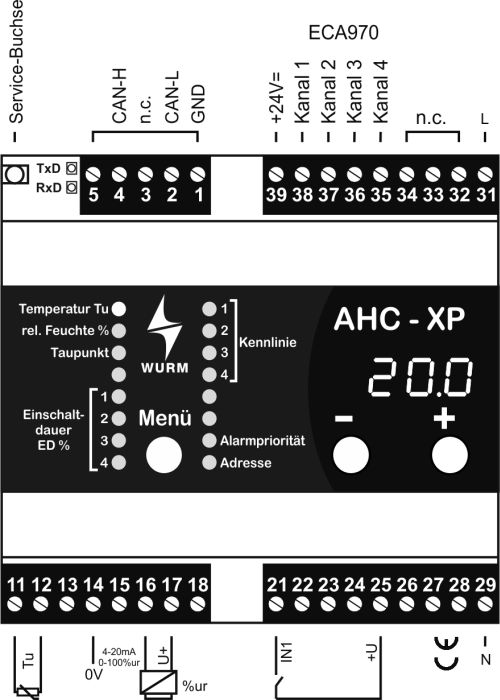

  • 4 phase-shifted outputs each for 2 ECA970 electronic load relays

  • Even distribution of current loads

  • 8 different control characteristics per channel for all standard refrigeration units

  • Adjustable minimum operating time per channel

  • Good temperature stability with 72 switchings per hour

  • Operating time storage for statistical evaluation

  • Graphical representation of power consumption in FRIGODATA XP

  • Simple parameter settings

  • Foreign-language front plates available on request

  • Direct connection of a CAN-USB to the service socket

  • Connection to the Wurm system via a communication bus (CAN bus) and FRIGODATA XP


 DateinameKategorieSpracheVersionLetzte AktualisierungGröße

Sprache: DE

 AHC-XP_V2.20_DB_2018-01_DE.pdfDatenblattDE2.2015.12.2017199,99 KB

Sprache: EN

 AHC-XP_V2.20_DB_2018-01_EN.pdfDatenblattEN2.2015.12.2017195,65 KB

Sprache: FR

 AHC-XP_V2.20_DB_2018-01_FR.pdfDatenblattFR2.2018.12.2017123,52 KB

Sprache: IT

 AHC-XP_V2.20_DB_2018-01_IT.pdfDatenblattIT2.2018.12.2017118,03 KB

Sprache: NL

 AHC-XP_V2.20_DB_2018-01_NL.pdfDatenblattNL2.2018.12.2017201,75 KB
DateinameKategorieSpracheVersionLetzte AktualisierungGröße
CAN-USB Mobiler CAN-PC converter
TRSEnthalpy shift module for setpoint shifting, used in combination with DCC-XP
TRH-XPBus-enabled dew-point controller with integrated temperature sensor and humidity sensor
ECA970Electronic load relay for contactless switching of glass and handrail heaters
NT24Power supply unit for 230V~ / 24V=
TERDoor installation frame for installation of individual devices in control cabinet doors
SNT24Power supply unit for 24V=
