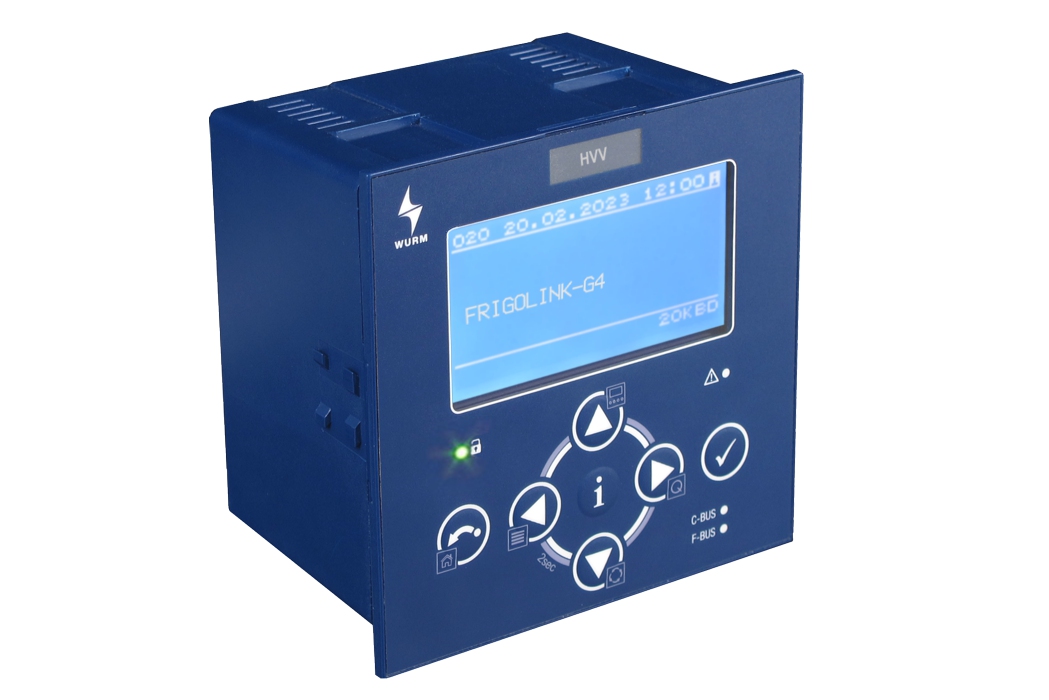

FRIGOLINK / Lieferprogramm / Verbunde / HVV-G4
Hauptmodul für 2 Verbundanlagen

  • Einfache Inbetriebnahme durch Parametrierung der Anlagen mit Voreinstellungen aus Expertendatenbank

  • Anschluss von 8 Verbund-Feldmodulen

  • Regelung von 16 Verdichtern (abhängig von Verdichtertyp, Feldmodultyp und Betriebsart)

  • Verdichterregelung nach COP

  • Unterscheidung von nicht verwendeten und defekten Fühlern

  • Regelkreise je Verbund:

    • Saugdruckregelung

    • Verflüssigerregelung

    • Regelung elektronischer Expansionsventile

  • Regelverfahren:

    • Standard-Stufenschaltwerk mit Grundlastwechsel

    • Verdichterregelung mit Frequenzumformer

    • Frigotakt+ und Frigotakt-G4

  • Sperrmöglichkeit gegen Parameterverstellung (SAC – Security Access Control)

  • Integrierte Relaisausgänge

  • Mehrsprachige Menüführung (DE/EN/FR/NL)

  • Innovatives G4-Bedienkonzept mit Direktnavigation über Quicklink

  • Grafik-Display mit Hintergrundbeleuchtung, Klartext, 6 Bedientasten und 1 Info-Taste

  • Kontextsensitive Hilfe mit Verlinkung zur Wurm-App paperless info

  • Austauschkompatibel zu FRIGOLINK-G3

  • Verbindung zum Wurm-System über Wurm-CAN-Kommunikationsbus (C-BUS) und FRIGODATA XP

  • Hohe Sicherheit durch galvanisch getrennte Wurm-CAN-Busse

 DateinameKategorieSpracheVersionLetzte AktualisierungGröße

Sprache: DE

 HVV-G4_V9.2.0_PI_2024-02_DE.pdfProduktinformationDE9.2.009.02.20241,82 MB
 HVV-G4_V9.2.0_DB_2024-01_DE.pdfDatenblattDE9.2.029.01.2024897,06 KB

Sprache: EN

 HVV-G4_V9.2.0_PI_2024-02_EN.pdfProduktinformationEN9.2.009.02.20241,41 MB
 HVV-G4_V9.2.0_DB_2024-01_EN.pdfDatenblattEN9.2.029.01.20241,32 MB

Sprache: ES

 HVV-G4_V9.2.0_PI_2024-02_ES.pdfProduktinformationES9.2.009.02.20241,41 MB

Sprache: FR

 HVV-G4_V9.2.0_PI_2024-02_FR.pdfProduktinformationFR9.2.013.02.20241,41 MB
 HVV-G4_V9.2.0_DB_2024-01_FR.pdfDatenblattFR9.2.029.01.2024976,27 KB

Sprache: IT

 HVV-G4_V9.2.0_PI_2024-02_IT.pdfProduktinformationIT9.2.009.02.20241,41 MB
 HVV-G4_V9.2.0_DB_2024-01_IT.pdfDatenblattIT9.2.029.01.2024956,36 KB

Sprache: NL

 HVV-G4_V9.2.0_PI_2024-02_NL.pdfProduktinformationNL9.2.013.02.20241,41 MB
 HVV-G4_V9.2.0_DB_2024-01_NL.pdfDatenblattNL9.2.029.01.2024937,98 KB
NameBeschreibung
HVV-G3Hauptmodul für 2 Verbundanlagen
HVV001BHauptmodul für Doppelverbundsteuerung
HVV-G4-MHauptmodul für Verbundanlagen mit Modbus-Anschluss
