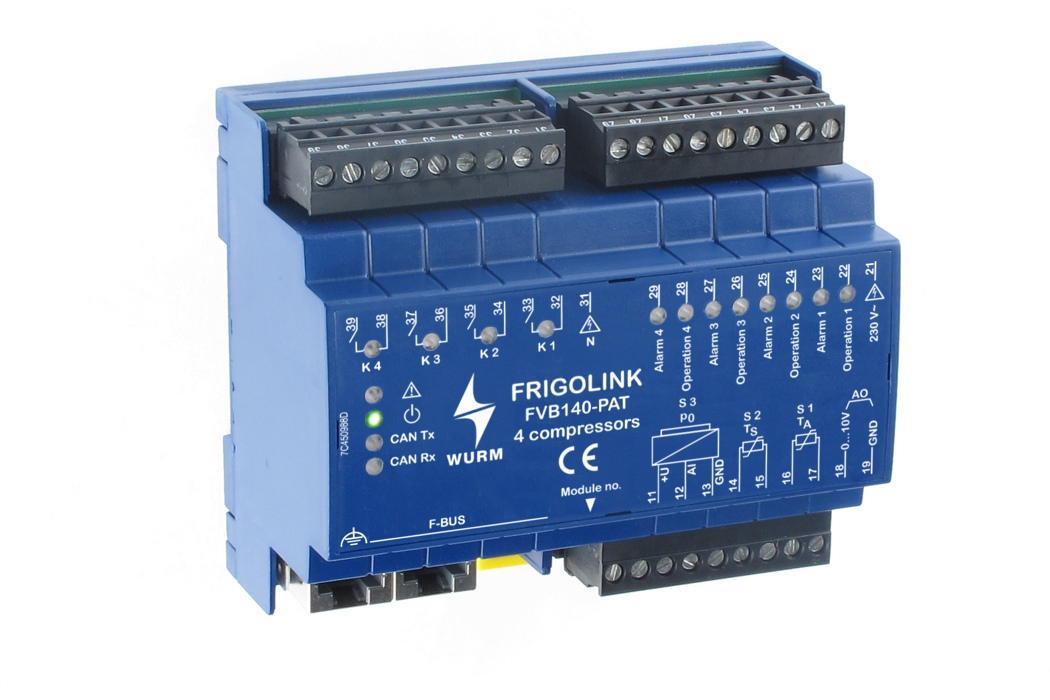

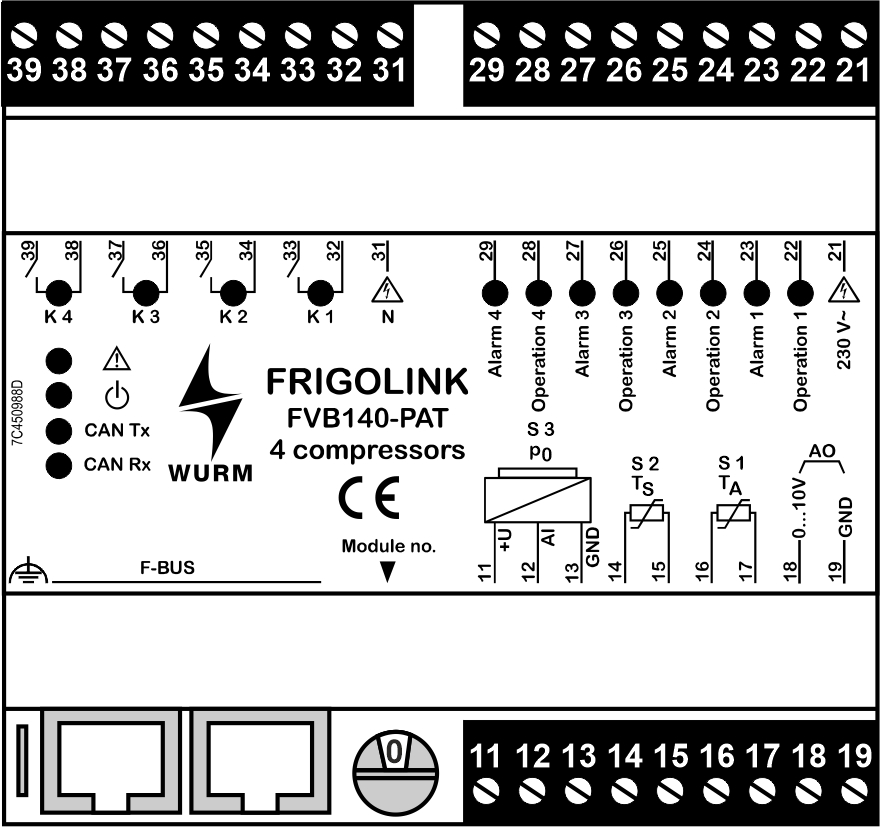

FRIGOLINK / Product range / Compounds / FVB140-PAT
Field module for switching and monitoring 4 compressors

  • 4 relay switch outputs 230V~ for 4 compressors
  • 230V~ inputs for operation feedback messages and detailed fault chain monitoring
  • Control of a screw compressor by ASV001 and HVI-G3/G4
  • Control of a reciprocating compressor by ASV101 and HVB-G3/G4, HVI-G3/G4, HVV-G3/G4
  • Emergency program in case of CAN bus errors
  • No parameters to be set on the device
  • Connection to master module via Wurm CAN field bus (F-BUS)



DateinameKategorieSpracheVersionLetzte AktualisierungGröße
FVB140-PAT_V3.30_PI_2018-01_EN.pdfProduktinformationEN3.3014.02.2018219,84 KB
FVB140-PAT_V3.30_PI_2018-01_DE.pdfProduktinformationDE3.3014.02.2018220,72 KB
FVB140-PAT_V3.30_PI_2017-04_FR.pdfProduktinformationFR3.3007.06.2017466,11 KB
FVB140-PAT_V3.30_PI_2017-04_IT.pdfProduktinformationIT3.3013.07.2017534,96 KB
FVB140-PAT_V3.30_PI_2017-04_NL.pdfProduktinformationNL3.3007.06.2017472,69 KB
FVB140-PAT_V2.4_PI_2015-02_RU.pdfProduktinformationRU2.418.09.20151,75 MB
NameBeschreibung
FVB120BField module for switching and monitoring 2 compressors
FVB120-PATField module for switching and monitoring 2 compressors
FVB140BField module for switching and monitoring 4 compressors
FVB240BField module for switching and monitoring 4 condenser fans
FVB240-PATField module for switching and monitoring 4 condenser fans
FVB320BField module for monitoring 2 secondary refrigerant pumps
FVB320-PATField module for monitoring 2 secondary refrigerant pumps
DateinameKategorieSpracheVersionLetzte AktualisierungGröße
FVB140-PAT_V2.4_PI_2015-02_EN.pdfProduktinformationEN2.413.02.20151,4 MB
FVB140-PAT_V2.4_PI_2015-02_DE.pdfProduktinformationDE2.413.02.20151,4 MB
FVB140-PAT_V2.4_PI_2015-02_FR.pdfProduktinformationFR2.413.02.20151,41 MB
FVB140-PAT_V2.4_PI_2015-02_IT.pdfProduktinformationIT2.413.02.20151,41 MB
FVB140-PAT_V2.4_PI_2015-02_NL.pdfProduktinformationNL2.413.02.20151,41 MB
NameBeschreibung
ZCB-CPrefabricated cables
ASV001Control module for screw compressors
ASV101Control module for reciprocating compressors
TERDoor installation frame for installation individual devices in control cabinet doors
ZCB-ADPCAN bus adapter
