FRIGOLINK / Product range / Special / HMU-G3
Master module with annual time switch for recording fault and operating messages

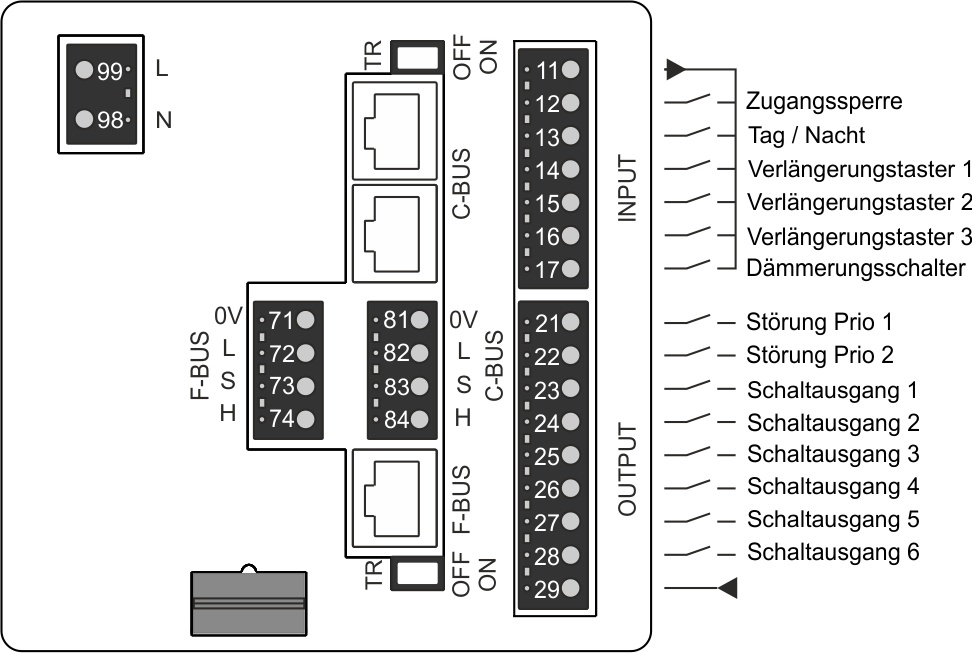

  • Annual time switch with 18 switching channels and 64 switching points per channel
  • 6 direct time switch channels (normally open contact)
  • Extendable with 3 field modules (FIO001B, FIO-PAT) for additional outputs and message inputs

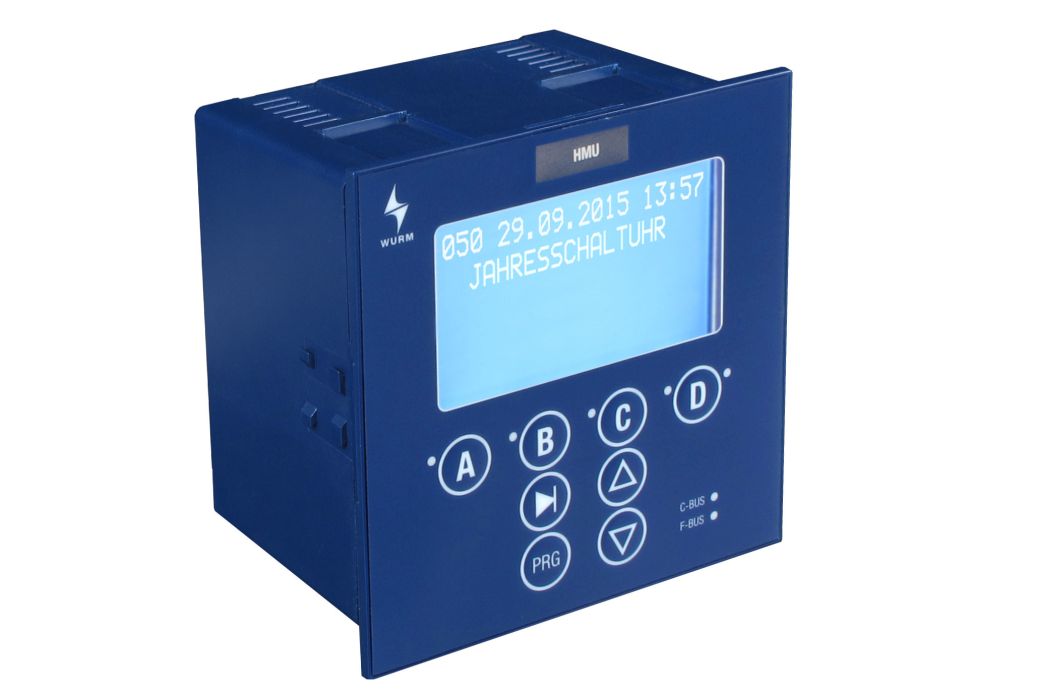

  • Graphical display with backlighting and 8 operating keys
  • CAN bus connection via patch cable and push-in terminals
  • Connection to the Wurm system through a Wurm CAN communication bus (C-BUS) and FRIGODATA XP
  • High level of safety thanks to the galvanically isolated Wurm CAN field bus (F-BUS) used to connect the field modules
DateinameKategorieSpracheVersionLetzte AktualisierungGröße
HMU-G3_V7.7.0_PI_2018-01_EN.pdfProduktinformationEN7.7.005.04.2018230,53 KB
HMU-G3_V7.7.0_PI_2018-01_DE.pdfProduktinformationDE7.7.005.04.20181,29 MB
HMU-G3_V7.61_PI_2017-05_FR.pdfProduktinformationFR7.6122.06.2017594,54 KB
HMU-G3_V7.61_DB_2018-01_IT.pdfDatenblattIT7.6118.12.201785,56 KB
HMU-G3_V7.61_PI_2017-05_NL.pdfProduktinformationNL7.6122.06.2017567,93 KB
HMU-G3_V7.61_PI_2015-02_RU.pdfProduktinformationRU7.6117.11.20152,18 MB
NameBeschreibung
DateinameKategorieSpracheVersionLetzte AktualisierungGröße
NameBeschreibung
MGR131, MGR141, MGR231, MGR241Installation frame for master modules, switch cards, adapters and dummy plates
ZEMTension device for frameless installation of master modules G3 and G4
ZCB-CPrefabricated cables
FIO001BUniversal input and output module
FIO-PATUniversal input and output module
ZCB-ADPCAN bus adapter
